Kuryr - Project Update

---

---

---

---

---

# Kuryr

## Project Update

Daniel Mellado - Senior Software Engineer - Red Hat<br />
Michał Dulko - Software Engineer - Red Hat<br />
<br>
OpenStack Summit Berlin, 13.11.2018<br />

---

# Agenda

1. What's Kuryr?
2. Kuryr-Kubernetes update (Rocky)
3. Kuryr-Kubernetes future (Stein, Train, …)

Slides available at: **https://dulek.github.io/kuryr-rocky-update**

---

What's Kuryr?

---
# Kuryr-Kubernetes

## Logos or mascots

#.left-column[![Insert graphic here](assets/kuryr-logo.png)]

#.right-column[.center[.half[![Insert graphic here](assets/kuryr-logo2.png)]]]

---

# Kuryr

## Deliverables

### In active development:

* *kuryr-kubernetes*
  * CNI plugin using Neutron to provide networking for K8s Pods.
  * Controller providing K8s Services using Octavia or Neutron LBaaS v2.
* *kuryr-tempest-plugin* - tests for kuryr-kubernetes

### Maintained:

* *kuryr* - docker network plugin
* *kuryr-libnetwork* - docker libnetwork plugin

### Retired (in Stein):

* *fuxi*
* *fuxi-kubernetes*
* *fuxi-golang*

---

Kuryr-Kubernetes update (Rocky)

---

# Kuryr-Kubernetes update (Rocky)

## Deprecations

* Running without kuryr-daemon is now deprecated.
  * Most likely to be removed in Stein.
--

* LBaaS v2 support is now deprecated
  * Less likely to be removed in Stein, but still possible.

## Upgrade

* For *LoadBalancer* service type: `external_svc_net` config option was added
  in `[neutron_defaults]` section.  `external_svc_subnet` is no longer
  required to be set.

```ini
[neutron_defaults]
external_svc_net=<id of external network>
# 'external_svc_subnet' field is optional, set this field in case
# multiple subnets are attached to 'external_svc_net'
external_svc_subnet=<id of external subnet>
```

---

# Kuryr-Kubernetes update (Rocky)

## Kubernetes/OpenShift releases compatiblity

<table border="1">
<thead valign="bottom">
<tr class="row-odd"><th class="head">Kuryr-Kubernetes version</th>
<th class="head">Kubernetes version</th>
<th class="head">OpenShift Origin version</th>
</tr>
</thead>
<tbody valign="top">
<tr class="row-even"><td>master (Stein)</td>
<td>v1.9.x, 1.10.x, 1.11.x, 1.12.x</td>
<td>3.9, 3.10</td>
</tr>
<tr class="row-odd"><td><strong>0.5.x (Rocky)</strong></td>
<td><strong>v1.9.x, 1.10.x</strong></td>
<td><strong>3.9, 3.10</strong></td>
</tr>
<tr class="row-even"><td>0.4.x (Queens)</td>
<td>v1.8.x</td>
<td>3.7</td>
</tr>
<tr class="row-even"><td>0.3.x (Pike)</td>
<td>v1.6.x, 1.8.x</td>
<td>No support</td>
</tr>
<tr class="row-odd"><td>0.2.x (Ocata)</td>
<td>v1.4.x, 1.6.x</td>
<td>No support</td>
</tr>
<tr class="row-even"><td>0.1.x (Newton)</td>
<td>v1.3.x, 1.4.x</td>
<td>No support</td>
</tr>
</tbody>
</table>

---

# Kuryr-Kubernetes update (Rocky)

## Active/Passive HA for kuryr-controller

* Works only when Kuryr-Kubernetes runs on Kubernetes/OpenShift in Pods.
* Uses Kubernetes native way of doing leader election.
  * Annotation on an Endpoint.
  * Requires running side car election containers.

```yaml
- image: gcr.io/google_containers/leader-elector:0.5
  name: leader-elector
  args:
  - "--election=kuryr-controller"
  - "--http=0.0.0.0:16401"
  - "--election-namespace=kube-system"
  - "--ttl=5s"
  ports:
  - containerPort: 16401
    protocol: TCP
```

* More info in Kuryr-Kubernetes documentation.

---

# Kuryr-Kubernetes update (Rocky)

## kuryr-daemon/CNI healthchecks a.k.a readiness and liveness probes

We support Kubernetes-compatible container liveness and readiness checks.
Elements of the check:

* presence of NET_ADMIN capabilities in container
* access to network namespaces of the host
* connectivity with Kubernetes API
* number of CNI ADD failures
* health of CNI components and amount of memory being consumed

.left-column[
```yaml
readinessProbe:
  httpGet:
	path: /ready
	port: 8090
	scheme: HTTP
  initialDelaySeconds: 60
  timeoutSeconds: 10
```
]
.right-column[
```yaml
livenessProbe:
  httpGet:
	path: /alive
	port: 8090
  initialDelaySeconds: 60
```
]

---

# Kuryr-Kubernetes update (Rocky)

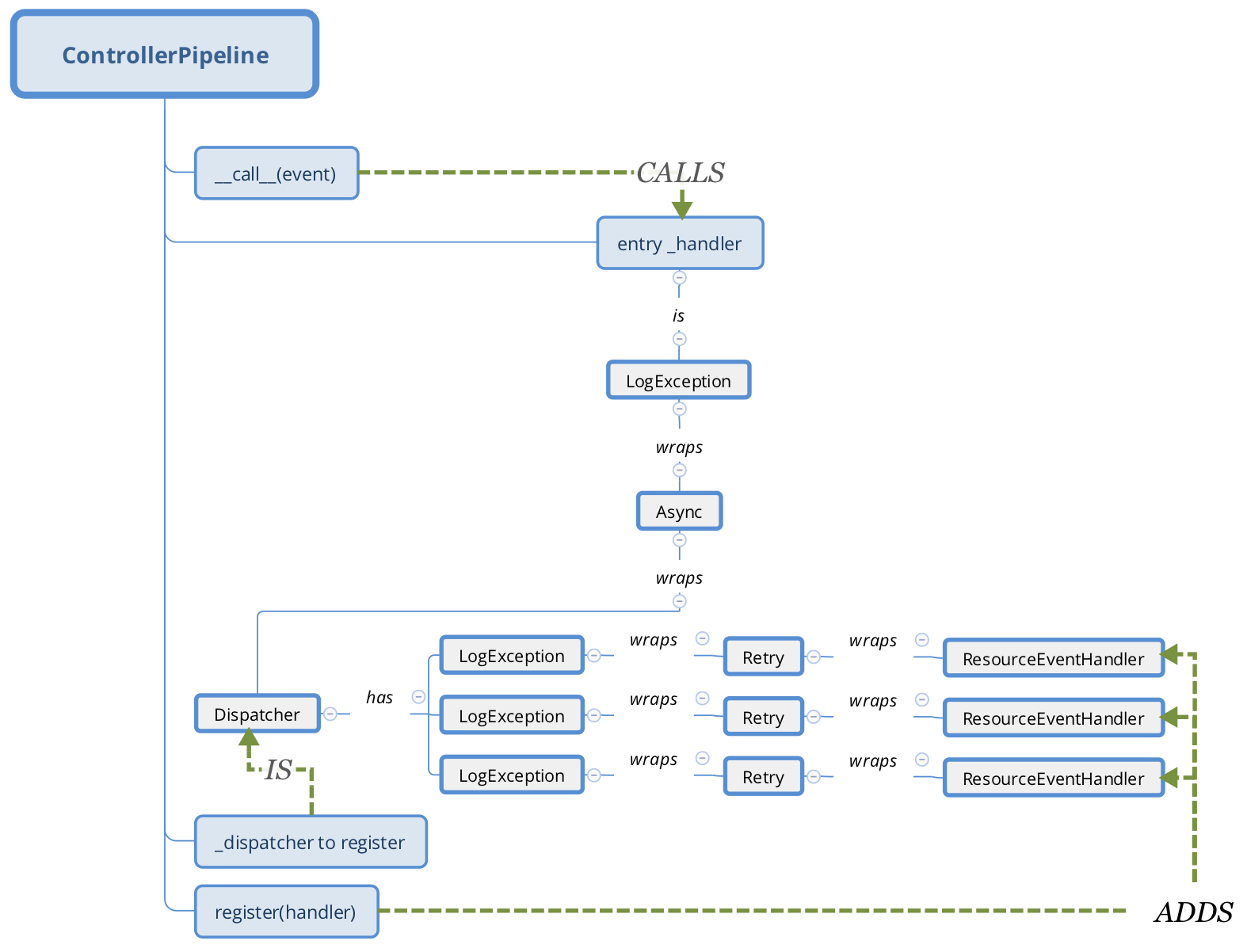

## Pluggable kuryr-controller handlers

---

# Kuryr-Kubernetes update (Rocky)

## Pluggable kuryr-controller handlers

Handler example:

```python
class VIFHandler(k8s_base.ResourceEventHandler):
    OBJECT_KIND = 'Pod'
    OBJECT_WATCH_PATH = "api/v1/pods"
```

```ini
[kubernetes]
enabled_handlers=vif,lb,lbaasspec
```

E.g. only Pods, Services handled by kube-proxy:
```ini
[kubernetes]
enabled_handlers=vif
```
]

<table border="1">
<thead valign="bottom">
<tr class="row-odd"><th class="head">Handler</th>
<th class="head">Kubernetes resource</th>
</tr>
</thead>
<tbody valign="top">
<tr class="row-even"><td>vif</td>
<td>Pod</td>
</tr>
<tr class="row-odd"><td>lb</td>
<td>Endpoint</td>
</tr>
<tr class="row-even"><td>lbaasspec</td>
<td>Service</td>
</tr>
<tr class="row-odd"><td>ocproute</td>
<td>Route</td>
</tr>
<tr class="row-odd"><td>namespace</td>
<td>Namespace</td>
</tr>
</tbody>
</table>
]

---

# Kuryr-Kubernetes update (Rocky)

## OpenShift Routes support

OpenShift Routes are similar to Kubernetes Ingress resources.

---

# Kuryr-Kubernetes update (Rocky)

## OpenShift Routes support

We implement them using Octavia L7 loadbalancer.

```ini
[ingress]
l7_router_uuid = 99f580e6-d894-442a-bc5f-4d14b41e10d2
[kubernetes]
enabled_handlers=vif,lb,lbaasspec,ingresslb,ocproute
```

.left-column[
```yaml
apiVersion: v1
kind: Route
metadata:
 name: testroute
spec:
 host: www.firstroute.com
 to:
   kind: Service
   name: kuryr-demo
```
]

.right-column[
```bash
mdulko:~/ $ curl \
  --header 'Host: www.firstroute.com' \
  172.24.4.3
kuryr-demo-1-gzgj2: HELLO, I AM ALIVE!!!
```
]

---

# Kuryr-Kubernetes update (Rocky)

## Project isolation

OpenShift supports basic multitenancy through projects

* We create a new subnet and router per project within a namespace so we ensure proper project isolation.

--
* Whenever a pod is created, proper security groups are assigned to it using the namespace security group driver

---

# Kuryr-Kubernetes update (Rocky)

## Support for multiple VIFs per Pod

a.k.a *Kubernetes Network Custom Resource Definition De-facto Standard v1
Support*

```ini
[kubernetes]
multi_vif_drivers=npwg_multiple_interfaces
```

---

# Kuryr-Kubernetes update (Rocky)

## Support for multiple VIFs per Pod

### Custom Resource Definition:

```yaml
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: network-attachment-definitions.k8s.cni.cncf.io
spec:
  group: k8s.cni.cncf.io
  version: v1
  scope: Namespaced
  names:
    plural: network-attachment-definitions
    singular: network-attachment-definition
    kind: NetworkAttachmentDefinition
    shortNames:
    - net-attach-def
  validation:
  <snipped!>
```

---

# Kuryr-Kubernetes update (Rocky)

## Support for multiple VIFs per Pod

### Network Attachment Definition:
```yaml
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: foobar
  annotations:
    openstack.org/kuryr-config: '{"subnetId": "<some-uuid-of-a-subnet>"}'
```

### Pod definition:
```yaml
kind: Pod
metadata:
  name: my-pod
  annotations:
    k8s.v1.cni.cncf.io/networks: foobar
spec:
  <snipped!>
```

---

Kuryr-Kubernetes future (Stein, Train, …)

---

# Kuryr-Kubernetes future (Stein, Train, …)

## What's going on on origin/master

Done (mostly):

* Python 3.6 support
* UDP services support
* Upgrades checks
* SR-IOV support

In progress:

* Network Policy support
* DPDK support
* Improvements in namespace isolation
* Further decentralization of kuryr-controller
* OVN support (both as Neutron and Octavia plugin)

---

# Kuryr-Kubernetes

## How to use, how to contribute

* Documentation: https://docs.openstack.org/kuryr-kubernetes/latest
* IRC channel: [#openstack-kuryr@Freenode](irc://chat.freenode.net/openstack-kuryr)
* Bugs: https://bugs.launchpad.net/kuryr-kubernetes
* How to contribute: https://wiki.openstack.org/wiki/How_To_Contribute

---

![CC](assets/cc.svg)
.medium-text[
Slides are available on

http://creativecommons.org/licenses/by/4.0/
]

---

# Q&A

## Thank you!

**Slides can be found at:**

- https://dulek.github.io/kuryr-rocky-update
- https://github.com/dulek/kuryr-rocky-update

**Michał Dulko**

![email](assets/email.png)   [mdulko@redhat.com](mailto:mdulko@redhat.com)
![irc](assets/irc.png)   [dulek (freenode)](irc://chat.freenode.net/dulek,isnick)

**Daniel Mellado**

![email](assets/email.png)   [dmellado@redhat.com](mailto:dmellado@redhat.com)
![irc](assets/irc.png)   [dmellado (freenode)](irc://chat.freenode.net/dmellado,isnick)
